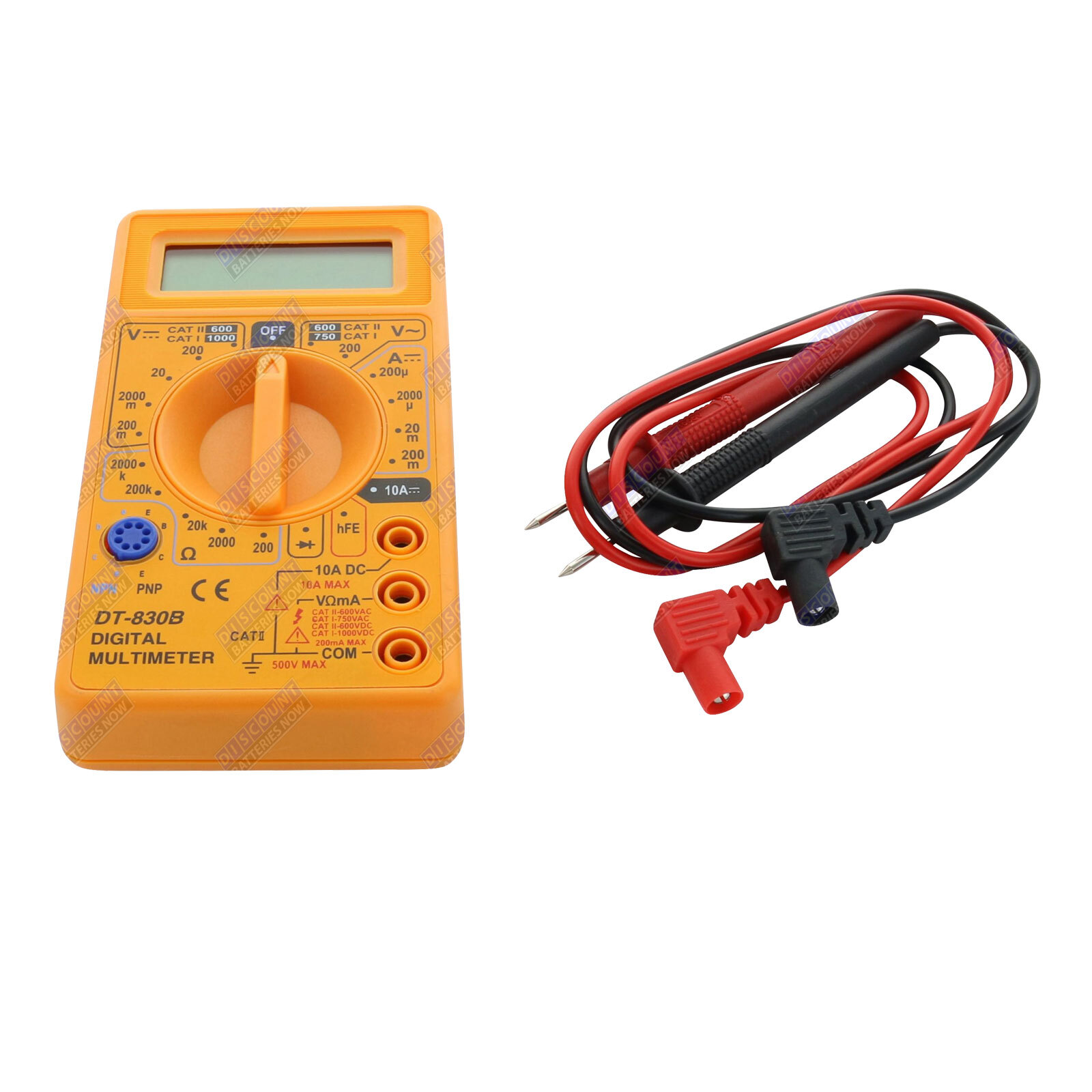

This entry level Digital Muti-Meter is convenient to for home or automotive applications. With a simple rotary switch to quickly select the function and range to be measured.

Features:

Test Lead and Batttery Included

LCD Screen - Large and Easy to Read Data Screen

Program Selector - Quick and Easy Program Selection via Turn Dial

Transistor Check - Convenient Transistor Test, Tisplays hFE Measurement

Specifications:

POLARITY:  Auto indication (-)

VOLTAGE: DCV: 200mV, 2000mV, 20V, 200V & 1000V
                   ACV: 200V & 750V (45–450Hz)

CURRENT: DCA: 200μA, 2000μA, 20mA, 2000mA & 10A

RESISTANCE: 200 Ohm, 2000 Ohm, 20k Ohm, 200k Ohm & 2000k Ohm

DRY CELL BATTERY CHECK: 1.5V (AAA, AA, C & D) & 9V

DIODE TEST: 1mA current for forward Vdrop

TRANSISTOR TEST: hFE (0–1000) @ 3.2Vce

ACCURACY: < ± 1.0% full scale reading

BATTERY: 9V dry cell

INTERNAL FUSE: M205 (F500mA)

LOW BATTERY WARNING: 7.5V

SIZE: 126mm x 69mm x 24mm



SKU DT830B
Brand Unbranded
Shipping Weight 0.1000kg
Unit Of Measure ea
