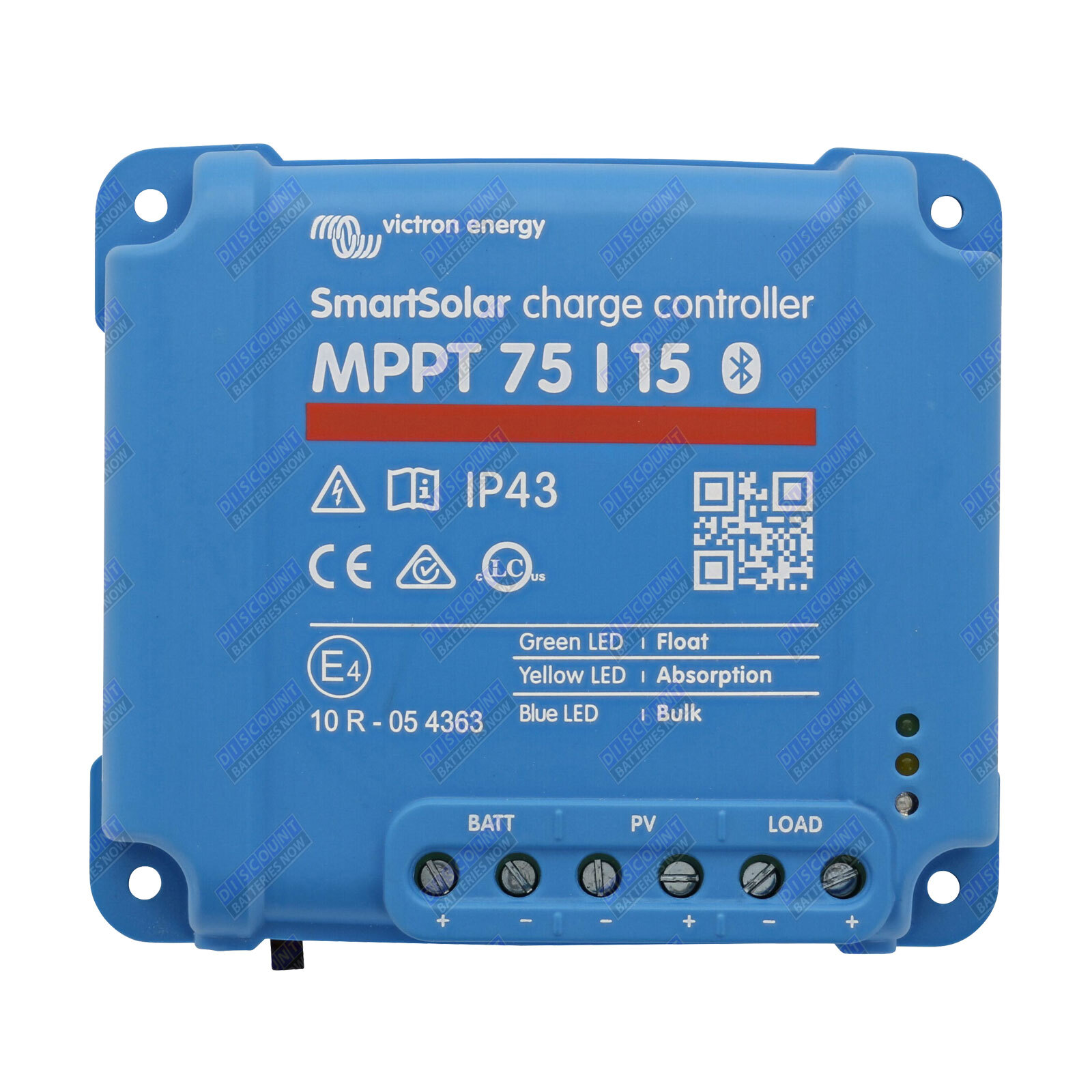

These highly efficient ultra-fast Maximum Power Point Tracking (MPPT) solar charge controllers have it all.High efficiency, optimal partial shading performance, programmable battery algorithms, street light functions and more. Smart is for built in Bluetooth for monitoring and control with VictronConnect. Options include remote monitoring over the internet via the VRM Portal.

This device has a Bluetooth Smart built-in so a dongle is not needed. The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Specifications:

Battery Voltage - 12/24V/ Auto Select
Rated charge current - 15A
Nominal 12V PV power - 220W
Nominal 24V PV power - 440W
Max PV short circuit current - 15A
Maximum PV open circuit voltage - 75V
Peak efficiency - 98%
Self-consumption - 10 mA
Charge voltage 'absorption' - 14.4V / 28.8V  (adjustable)
Charge voltage 'float' - 13.8V / 27.6V  (adjustable)
Charge algorithm - multi-stage adaptive
Temperature compensation - -16 mV / °C
Protection - Battery reverse polarity (fuse), Output short circuit / Over temperature / PV reverse polarity
Operating temperature - -30 to +60°C (full rated output up to 40°C)
Humidity - 95%, non-condensing
Data communication port - VE.Direct

Enclosure:

Colour - Blue (RAL 5012)
Power terminals - 6mm² / AWG10
Protection category - IP43 (electrical components), IP22 (connection area)
Weight - 0.5KG
Dimensions - 100mm (H) x 113mm (W) x 40mm (D)

Standards:

Safety - EN/IEC 62109

SKU SCC075015060R
Brand Victron Energy
Shipping Weight 0.6000kg
Unit Of Measure ea
